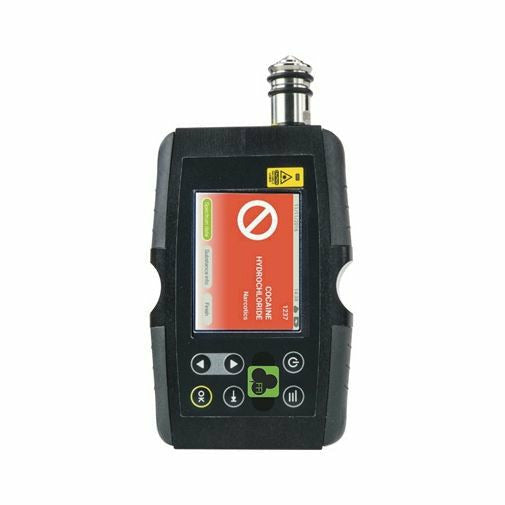

HandyRam II RAMAN Spectrometer

SirchieSKU: DE-2426

Login to view prices.


Pocket-sized identifier of narcotics, explosives & toxic chemicals

This incredibly small Raman handheld analyzer identifies illicit narcotics, controlled drugs, explosives materials, pharmaceutical ingredients and a wide range of unknown substances. Thousands of compounds are available in FFI’s spectral libraries. It also analyzes and reports the components of mixtures.

HandyRam™ II is a compact, ruggedized Raman spectrometer that is incredibly powerful. It is able to analyze thousands of explosives, narcotics and toxic chemicals in seconds. Laser power is adjustable and use programmable acquisition delay when measuring energetic materials. HandyRam™ II features a durable and waterproof construction yet can also be connected to a PC for detailed spectral analysis, library and record management.

HandyRam™ II has tactile buttons for operation designed for use while wearing gloves.

Accessories available: pouch, shoulder strap, USB cable, laser aperture cap with polystyrene target, sample vials, point-and-shoot adapter, vial holder, 90° angle adapter, attachment point, connection kit ethernet and WIFI, AC Adapter 5 VDC/1 A USB

SERS Kit (Surface Enhanced Raman Spectroscopy

Quick Identifcation of difficult Substances: Heroin, Fentanyl


The SERS kit attaches to HandyRam™ II enhancing the capability to identify dark colored substances or mixtures with very low concentrations. The device is capable of detecting parts-per-million (ppm) levels of “street quality” samples of e.g. heroin, fentanyl and fentanyl derivatives. The SERS kit is based on patent pending technology used together with disposable SERS surfaces (SERS disposables).


HandyRam II Specifications:

Battery & Operating Time Rechargeable Li ion battery (transportable by air) >4 hours operating time from full charge
Weight & Size 650 gm (1.4 lb.; 15.8cm x 10.1cm x 2.9cm (6.2" x 4.0" x 1.1")
Environmental IP67; Operating -20C to +50C, Storage: -30C to +50C; MIL-STD-810G
Display 3.5" transmissive color TFT with LED backlighting
Laser Power Max 300mW -adjustable
Wavenumber Range & resolution Range: 400 cm-1 to 2300 cm-1, Resolution: 10 cm-1
Analysis Time As little as 10 seconds but no longer than 5 minutes
Spectral libraries & Data Output Various libraries available:narcotics, explosives, etc. - Data Ouput: Text; .txt, .csv, jcamp
Interface Mini USB
Calibration Standard ASTM 1840 Raman Frequency Shift

Applications: Narcotics Identification, Counterfeit Pharmaceuticals, Forensics, Site Exploitation, Material Quality Control

Approvals & Certifications: Approvals & Certifications: EN 60825-1:2007 Class 3 B, EN 61000-6-3:2007, AS/NZS CISPR 22, EN 61000-6-1-6-1: 2007, EN 61000-4-2, -3, EN 60950–1:2006–05-29 + A1/A2/A11/AC1, EN 60950-22:2006-06-19 + C 1/A11/A11C1, EN 61010-1:2010 (Third Edition), Directive 2012/19/EU (WEEE), Directive 2011/65/EU (RoHS), IEC 60529 IP67, MIL-STD-810G 514.6 (vibration), MIL-STD-810G 516.6 (functional shock)
